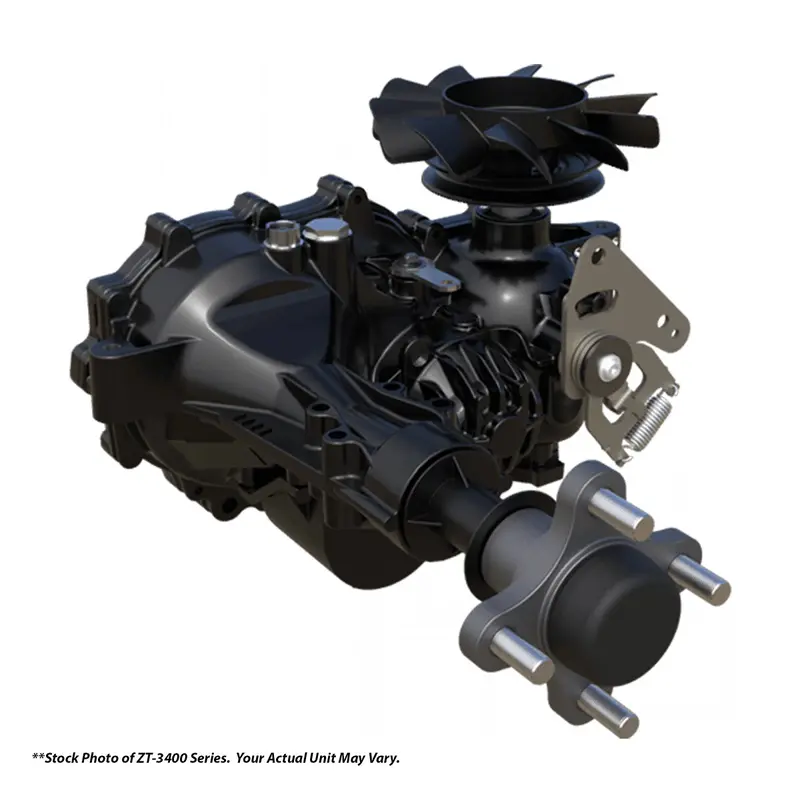

ZT-3800™
PREMIUM COMMERCIAL VEHICLES DESERVE A PREMIUM COMMERCIAL TRANSMISSION.
Demanding jobs require having equipment that overperforms. That’s why more and more premium, heavy-duty commercial vehicles are driven by the Hydro-Gear ZT-3800™. This relentless commercial transaxle assembly features an upgraded housing, all-steel gear train, and larger axle bearing for added weight capability, the advanced rotating kit is based on our long-lasting high-efficiency 12cc pump and 16cc motor. Options include an oil cooler port for reducing heat or an internal expansion tank for easier installation and reduced potential for leaks.
- Designed for premium commercial vehicles
- Unmatched maneuverability in tight spaces
- High-efficiency 12cc pump & 16cc motor
- Durable 1-1/8″ axle for heavier loads
- Upgraded housing, all-steel gear train, and larger axle bearing provides added weight capability for heavier vehicles
- Optional oil cooler port or internal expansion tank for easier installation
SPECIFICATIONS
TRANSMISSION MODEL – ZZ
OVERALL TRANSAXLE REDUCTION – 21.09:1
PUMP DISPLACEMENT – 0.73 in3 /rev [12 cc/rev]
MOTOR DISPLACEMENT – 0.97 in3 /rev [16 cc/rev]
INPUT SPEEDS
- MAX HI-IDLE (NO LOAD) – 3600 rpm
- MIN (LOADED) – 1800 rpm
OUTPUT TORQUE – up to 500 lb-ft [up to 677 Nm]
SPEED – up to 11 mph [up to 17 kph]
GROSS VEHICLE WEIGHT – up to 1800 lbs [816 kg]
AXLE SHAFT DIAMETER – 1.125 in [28.56 mm]
AXLE SHAFT END OPTIONS
- Tapered
- 4-bolt Flange
- 5-bolt Flange
WEIGHT OF UNIT – 35.8 lbs [16.2 kg]
